Fuller Hydraulic Door System

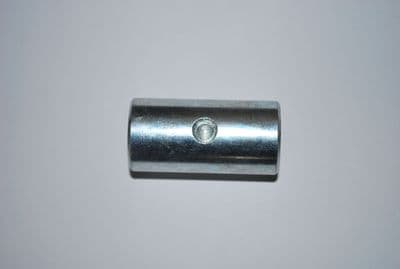

Hook Hinge Pin (1 Required per Catch)

Hook Hinge Pin for either in a 6 door clamp configuration for the larger doors and 4 door configuration for the smaller tanks

Secured by a M8 Bolt with lock nut into the hook and follower pin are (available separate)

Plated Finish

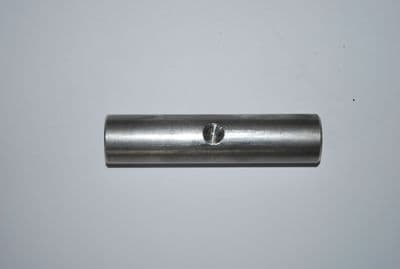

Fuller Tankers 20mm Hydraulic Door Catch Following Pin

Spare part for the Fuller Hydraulic Door Catch

20mm Stainless follower pin is used to retract and extend the Door Hook Movement

Smaller tanks require 4 follower pins and the large tanks 6 follower pins

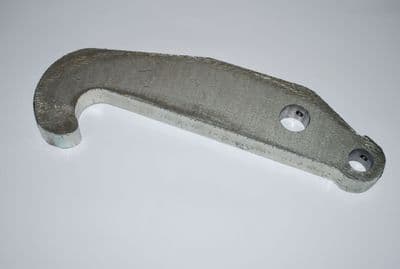

Fuller Tanker Door Hook

25mm thick in either in a 6 door clamp configuration for the larger doors and 4 door configuration for the smaller tanks

has the centre 25mm pivot hole and fixing and 20mm following hole and fixing (available separate)

Plated Finish

Genuine Fuller Door Catch Component

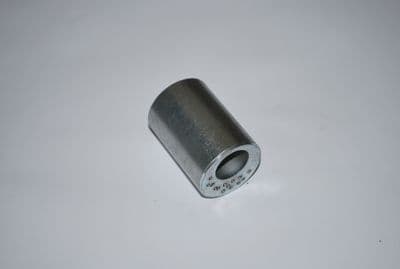

Eccentric Door adjustment Bush enabling the door catch to be adjusted when needed to tighten the door seal.

Generally in a 4 door catch configuration on smaller vehicles and 6 door catch configuration of the larger vehicles

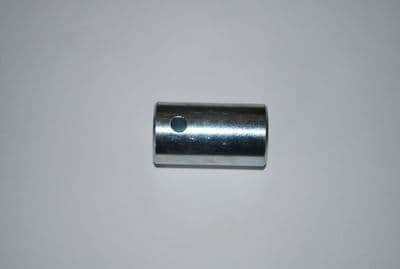

25mm Main Pivot Pin (2 Required To Make Catch)

Main side Pivot Pin for either in a 6 door clamp configuration for the larger doors and 4 door configuration for the smaller tanks

they are secured by a Caphead Bolt and lock nut (Later Version) and the centre Pin and follower pin are (available separate)

Plated Finish

NOTE: For a complete door catch 2 are needed per Door Catch assembly

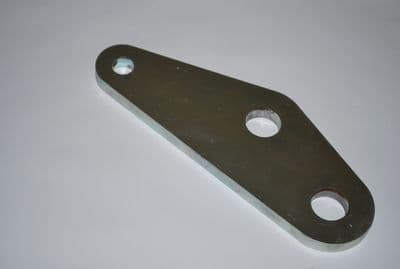

Fuller Hydraulic Door Catch cheek plates are used to join the hook and hydraulic ram. Plated finish

The Fuller Door Catch is generally in a 4 catch or 6 catch arrangement depending on the tank diameter.

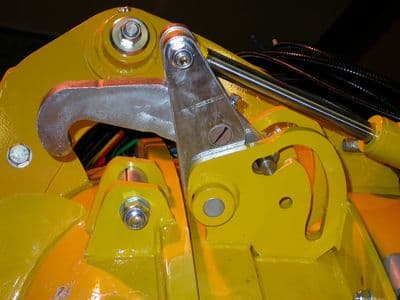

Fuller Hydraulic Door Catch operated by Hydraulic ram
used to open and close door catch to secure the Door on Vacuum Tankers

The catch has adjustment on the Door Cam Bush, All Individual Parts are available

4 Catches are required on a small vehicles and 6 Catches on a larger vehicles

Fuller Door Pivot Pins

Original Spare Parts manufactured from 40mm diameter

2 Required per Tank

Manufactured with a M20 thread on the end for securing the door pivot pin

Latest version also has grease point through the pin to grease the pivot Bush

Plated Finish

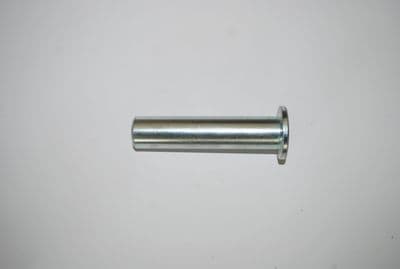

Door opening Ram Fixing Pins. 2 required per door opening ram. 4 off per tanker

Drilled for Grease nipple and split pin to secure the pin in place

Different sizes required depending on the small tank opening rams and large tank opening rams

Plated finish
