3/4" Range of Sewer Jetting Nozzles

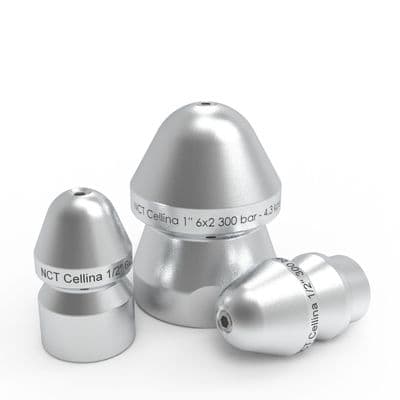

Roundhead standard nozzles with
wide rear jet angle for efficient
Sidewall cleaning.
Applications:
General cleaning, Small pipes, domestic pipes. To be used with
low/medium flow high pressure pumps.

• Width 35mm Length 50mm
• Weight 170 grams
• Jet inclination 35°
• Front Jet M6
• Flow (ltr/min) – 60-230
• For use with pipe 60-200mm
• Maximum Pressure 300 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

• Width 60mm Length 72mm
• Weight 0.8Kg
• Jet Angle 15°
• Flow (ltr/min) – 55-230
• For use with pipe 100-250mm
• Number of Inserts – x8

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

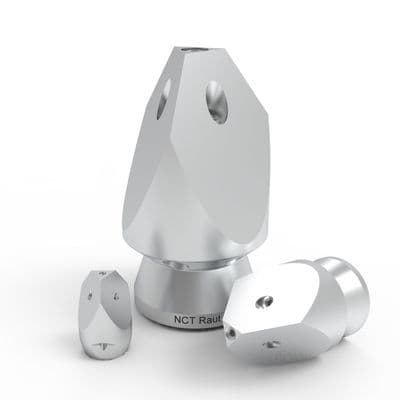

Raut Nozzle with multiple front jets for penetrating through obstructions. Applications include grease obstructions, blocked pipes, penetration in solid, masses and total blockages.

• Width 50mm
• Length 92mm
• Weight 0.6kg
• x4 Front Jets 0°/20°
• x6 Rear Jets 20°
• Flow (ltr/min) – 85-250
• For use with pipe 100-300mm
• Maximum Pressure 300 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

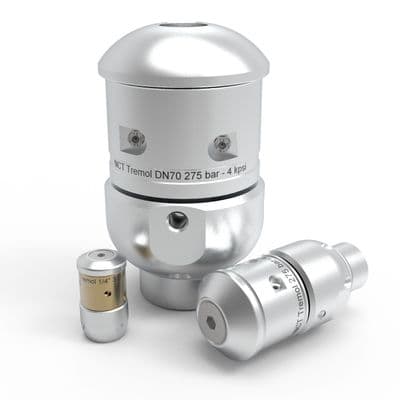

Cleaning nozzles with spinning radial jets (85°/90°).

Nozzle centralizers are recommended for a better cleaning so the nozzle is lifted from the bottom of the pipe. To be used for removal of grease and limestone from pipe walls, pipe cleaning before CCTV inspection or root cutter jobs.

• Width 50mm
• Length 90mm
• Flow (ltr/min) – 100-250
• For use with pipe 250-300mm
• Maximum Pressure 250 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.
