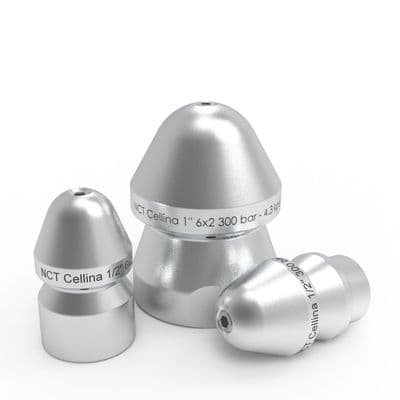

1" Range of Sewer Jetting Nozzles

Roundhead standard nozzles with
wide rear jet angle for efficient
sidewall cleaning.
Applications:
General cleaning, Small pipes, domestic pipes. To be used with
low/medium flow high pressure pumps.

• Width 48mm Length 65mm
• Weight 460 grams
• Jet inclination 35°
• Front Jet M6
• Flow (ltr/min) – 70-260
• For use with pipe 100-300mm
• Maximum Pressure 300 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

• Width 70mm Length 86mm
• Weight 1.3Kg
• Jet Angle 15°
• Max Pressure 300 Bar
• Flow (ltr/min) – 60-260
• For use with pipe 150-350mm
• Number of Inserts – 8

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

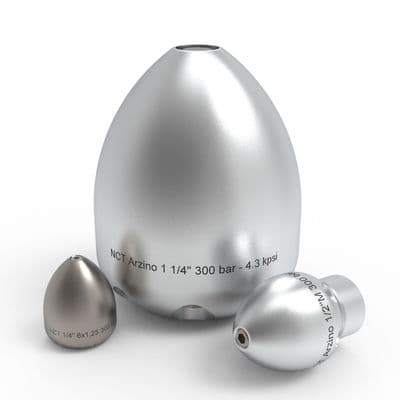

Egg Shaped Nozzle for general cleaning and long runs. It can be used in bended pipes for general cleaning, sand, mud and light sediments removal, long runs.

• Width 70mm Length 86mm
• Weight 1.3Kg
• Jet Angle 15°
• Max Pressure 300 Bar
• Flow (ltr/min) – 60-260
• For use with pipe 150-350mm
• Number of Inserts – 8 Ceramic

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

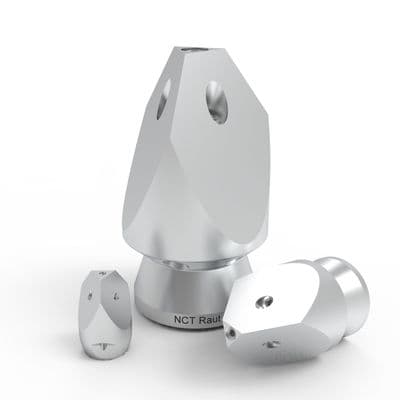

Raut Nozzle with multiple front jets for penetrating through obstructions. Applications include grease obstructions, blocked pipes, penetration in solid, masses and total blockages.

• Width 59mm
• Length 105mm
• Weight 1 kg
• x4 Front Jets 0°/20°
• x6 Rear Jets 20°
• Flow (ltr/min) – 100-350
• For use with pipe 150-400mm
• Maximum Pressure 300 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

Raut Nozzle with multiple front jets for penetrating through obstructions. Applications include grease obstructions, blocked pipes, penetration in solid, masses and total blockages. All Ceramic Inserts

• Width 59mm
• Length 105mm
• Weight 1 kg
• x4 Front Jets 0°/20° Ceramic
• x6 Rear Jets 20° Ceramic
• Flow (ltr/min) – 100-350
• For use with pipe 150-400mm
• Maximum Pressure 300 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

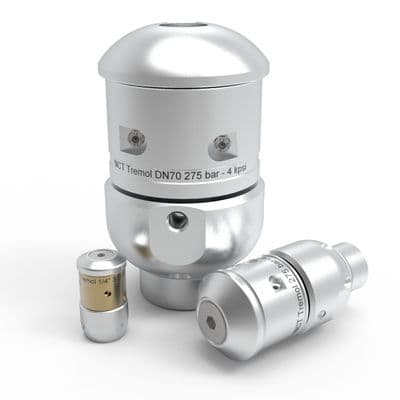

Cleaning nozzles with spinning radial jets (85°/90°).

Nozzle centralizers are recommended for a better cleaning so the nozzle is lifted from the bottom of the pipe. To be used for removal of grease and limestone from pipe walls, pipe cleaning before CCTV inspection or root cutter jobs.

• Width 70mm
• Length 125mm
• Flow (ltr/min) – 100-280
• For use with pipe 200-400mm
• Maximum Pressure 250 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

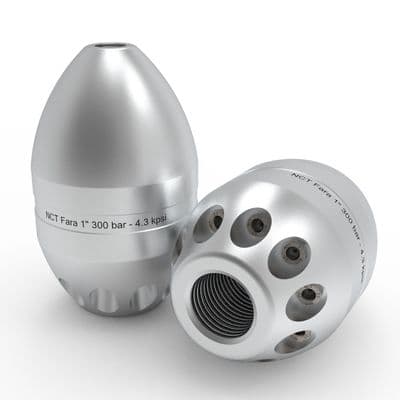

Fara nozzle for high thrust and effective cleaning jobs. Applications include general cleaning, heavy debris removal

• Width 87mm Length 142mm
• Weight 3.6kg
• Jet angle 15°
• Flow (ltr/min) – 120-390
• For use with pipe 150-500mm
• Number of Inserts – 10+1
• Maximum Pressure 300 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

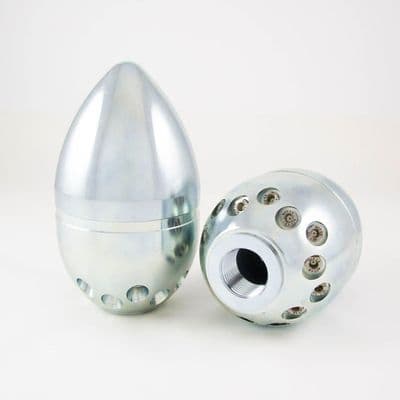

Duranno nozzle for high thrust and effective cleaning jobs. Applications include general cleaning, heavy debris removal

• Width 107mm
• Length 186mm
• Weight 9.5kg
• Jet angle 20/30°
• Min Flow (ltr/min) – 270
• For use with pipe 300-800mm
• Number of Inserts – 16
• Maximum Pressure 300 Bar

Please contact the Sales Team to provide Jetting pump flow, pressure, hose length and diameter so that we can set nozzle specifications correctly.

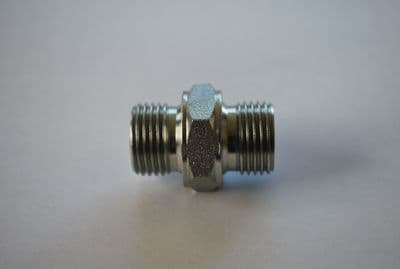

25mm (1"x 1") Fitting - Male
